SectionLift 50 Modular Spreader Beams

about_us_header

SectionLift Modular Spreader Beams 50 specification. Here, we provide comprehensive information about our high-quality spreader beams designed to meet a wide range of lifting requirements. It is important to note that the loads presented in the specifications serve as conservative indications, and our spreader beams are capable of handling increased loads at specific spans. If your specific application falls just outside the limits mentioned or if you have any unique lifting needs, we encourage you to reach out to us at +44(0)1302 367755 or sales@sectionlift.co.uk. Our experienced team is ready to assist you in finding the perfect solution for your lifting challenges.

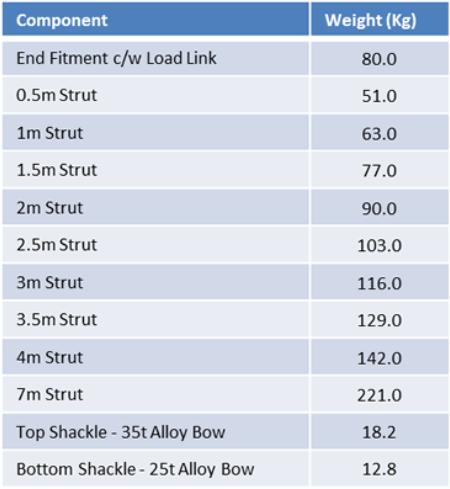

SectionLift 50 Specifications

sectionlift_50_components

Minimum Beam Length: 1m
Maximum Beam Length: 16m
Maximum Load Capacity: 50 tonnes up to 6m Long
40 tonnes capacity at 8m span

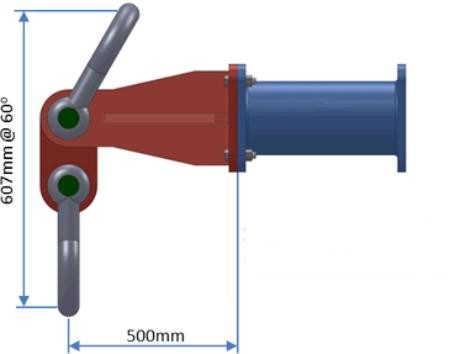

SectionLift 50 End Fitment Dimensions and Headroom

sectionlift_50_dimension

Headroom (H) @ 30° STV Angle = L x 0.87
Headroom (H) @ 45° STV Angle = L x 0.50

SGS ISO 9001

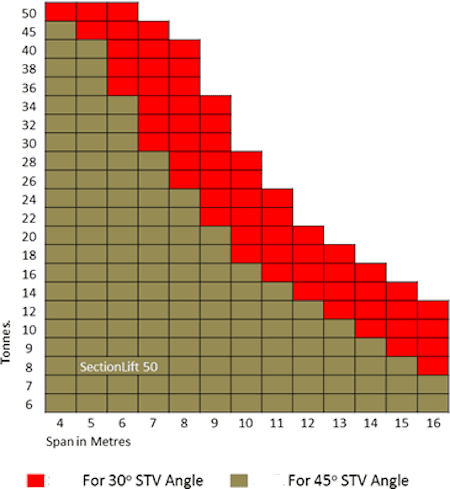

SectionLift 50 Working Load Limit Table

sectionlift_50_loads

Calculation for WLL of Each Single Leg Top Sling. (2 required.)
For 30° Angle = Load x 0.58
For 45° STV Angle = Load x 0.70
For Maximum WLL (50t) @ 30° STV Angle = 29t
For Maximum WLL (50t) @ 45° STV Angle = 35t

sectionlift_headroom
